Scope of Work
- Designed single span transfer to a new dead end tower. Includes detailed foundation, steel fabrication design, BOM, plan and profile, and sag/tension reports. Also included analysis of existing 3 pole dead end structure Q10P#15.
- Civil works and grounding for new dead end tower.

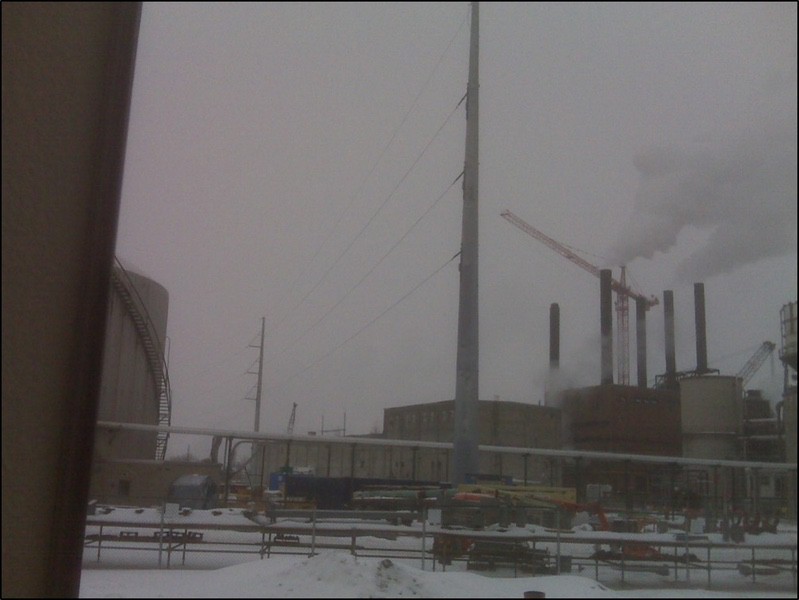

- Supply and installation of 1 new H Frame dead end tower 60ft in height complete with required 6 new station post and dead end insulators.
- Supply and installation of 6 new anchor and guy assemblies onto existing Q10P #15.
- During outage, completed testing of circuits and installation of temporary grounds onto the Q10P circuit after switched out and isolated.
- Sag and dead end the transferred Q10P span and skywire at the new dead end.
- Quality assurance & as built drawings
- Complete O&M support
